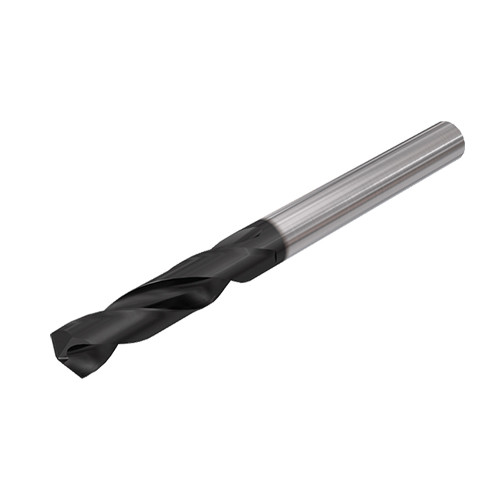

SCD 032-014-060 AP3N IC908
DIN 6537 solid carbide drills without coolant holes, drilling depth 3xD.
Termékadatok

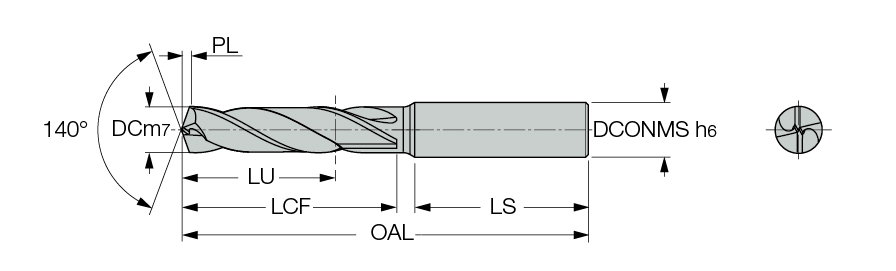

| Drill Bit Size / Cutting Diameter (DC) | 3.2 mm | Minőség | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.2 mm | Mérés típusa | Metric |
| Bevonat | TiAlN | Usable Length (LU) | 14 mm |
| Alkalmazható anyag | | Acél | Rozsdamentes acél | Öntöttvas | Kemény anyagok | Erősen ötvözött hőálló acélok | | Length Chip Flute (LCF) | 21 mm |
| Alkalmazás | | Fúrás | | Overall Length (OAL) | 62 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Test anyaga | Carbide |
| Shank Length (LS) | 34 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Szártípus | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Forgácsolóél anyaga | Carbide | Egység | M |
| Tool Type | solid carbide Drills |
Termékjellemzők
| Termékcsalád | DIN 6537 solid carbide drills without coolant holes, drilling depth 3xD. | COO | Korea |
Shipping Info
Csomag súlya
0.0210
