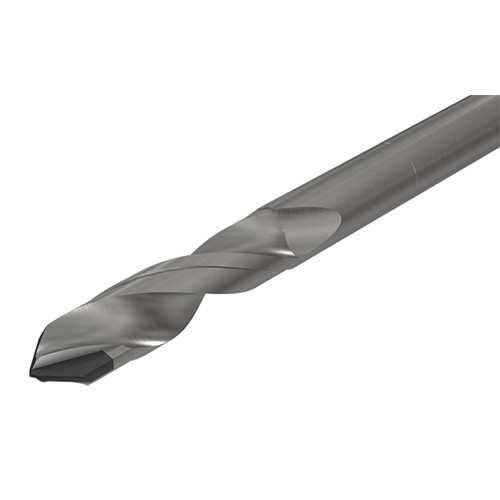

SCD 1000-040-100 WPCD
Solid carbide drills with PCD insert for composite materials (CFRP) and stack machining
Termékadatok

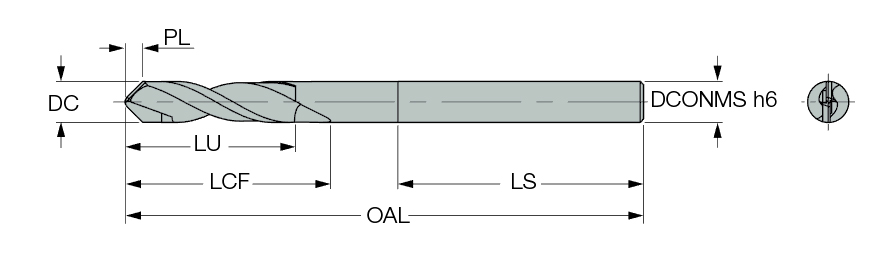

| Drill Bit Size / Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 40 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Length Chip Flute (LCF) | 50 mm |
| Alkalmazás | | Fúrás | | Overall Length (OAL) | 84 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 40 mm | Test anyaga | Carbide |
| Szártípus | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | solid carbide Drills | Shank Diameter Tolerance (TCDMM) | h6 |
| Mérés típusa | Metric | Egység | M |
Termékjellemzők
| Termékcsalád | Solid carbide drills with PCD insert for composite materials (CFRP) and stack machining | COO | Israel |
