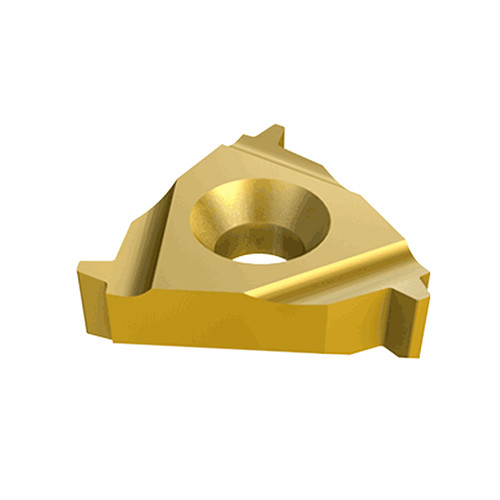

27EL 4 STACME IC50M
External STUB ACME Application: control valves and when normal ACME is too deep due to wall thickness
Termékadatok
| Menetszabvány | THFT | | Alkalmazható anyag | | Acél | Rozsdamentes acél | |

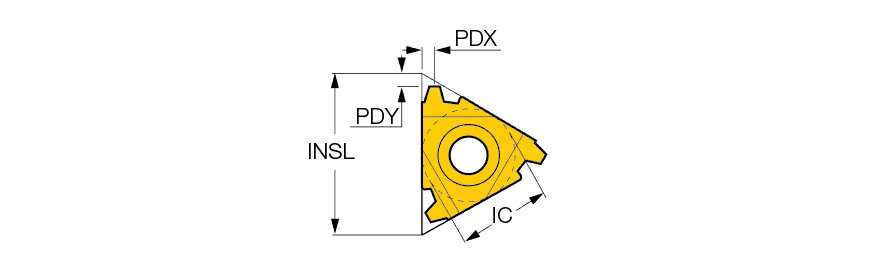

| Inscribed Circle Diameter (IC) | 15.88 mm | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 27.5 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 4 | Mérés típusa | Metric |
| Minőség | IC50M | Test anyaga | Carbide |
| Bevonat | Uncoated | Thread Form Type (THFT) | STAC29 |
| Forgácsolóél anyaga | Carbide | Egység | M |
| Alkalmazás | | Külső Menetmegmunkálás | | Profile Distance EY (PDY) | 2.2 mm |
Termékjellemzők
| Termékcsalád | External STUB ACME Application: control valves and when normal ACME is too deep due to wall thickness | Családnév | ER/L-STACME |

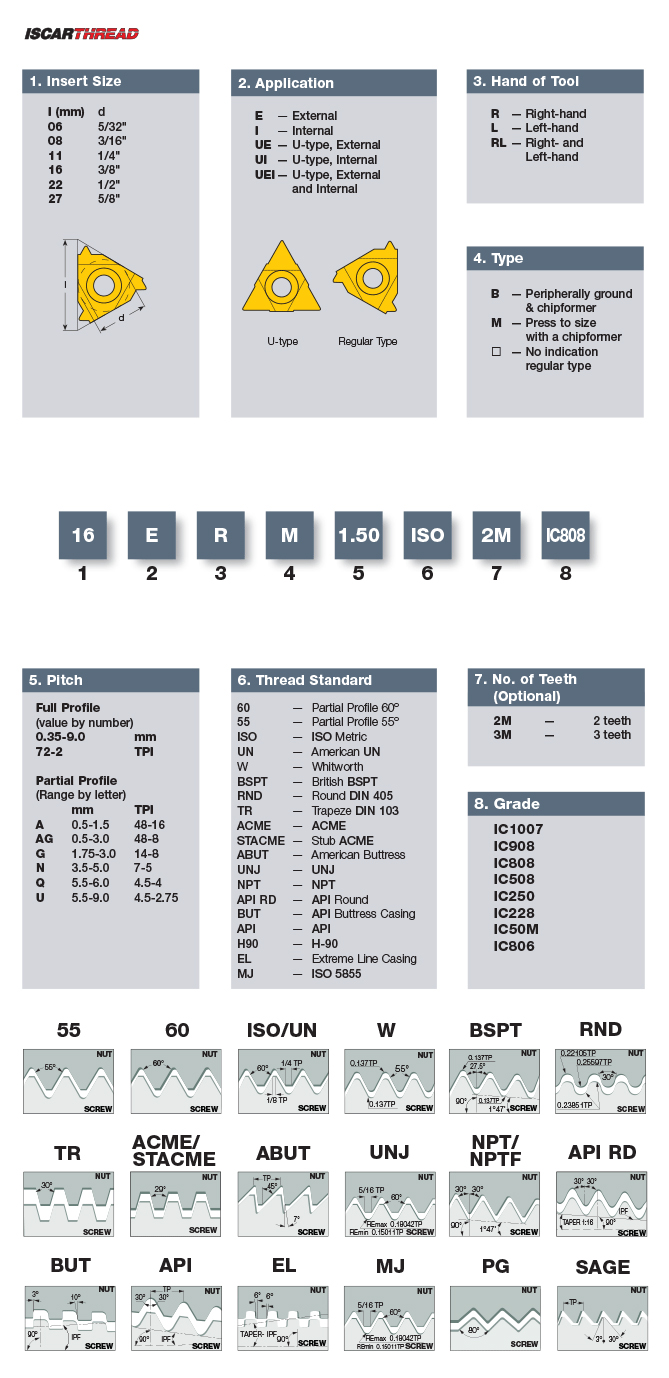

| Megjegyzések | For Insert Identification System, click on More Info STUB ACME ASME/ANSI B1.8-1988 Class 2G | BrandName | Iscar |
| COO | Israel |
Shipping Info
Csomag súlya
0.0248
Név
Laydown Threading Indexable Inserts
Családnév
ER/L-STACME
BrandName
Iscar
