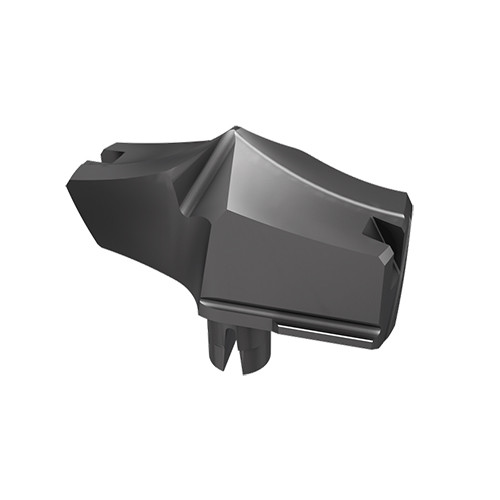

HFP 390-SPADE IQ IC908
Exchangeable DFN drill heads for carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.5 mm.
Termékadatok

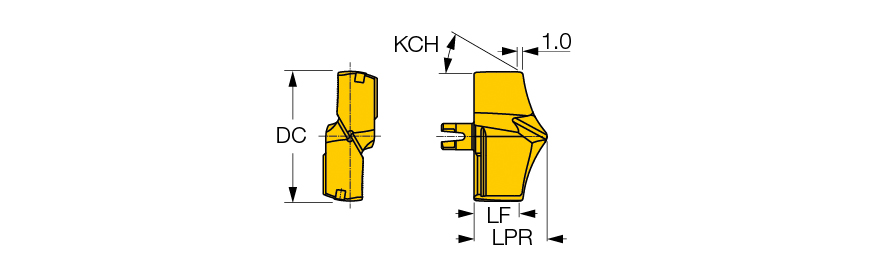

| Cutting Diameter (DC) | 39 mm | Insert Thickness (S) | 22 mm |
| Alkalmazható anyag | | Acél | Rozsdamentes acél | Öntöttvas | Kemény anyagok | Erősen ötvözött hőálló acélok | | Point Length (PL) | 8.43 mm |
| Alkalmazás | | Fúrás | | Point Angle (SIG) | 137 Degrees |
| Minőség | IC908 | Bevonat | TiAlN |
| Tool Type | Drilling Heads | Corner Chamfer Width (CHW) | 1 mm |
| Insert Seat Size Code (SSC) | 39.0 | Élletörési szög | 30 Degrees |
| Functional Length (LF) | 13.6 mm | Test anyaga | Carbide |
| Forgácsolóél anyaga | Carbide | Egység | M |
| Mérés típusa | Metric |
Termékjellemzők
| Termékcsalád | Exchangeable DFN drill heads for carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.5 mm. | COO | Israel |
| Megjegyzések | Advance self centering, and high surface finish Intermediate sizes can be supplied on request |
Shipping Info
Csomag súlya
0.0360
