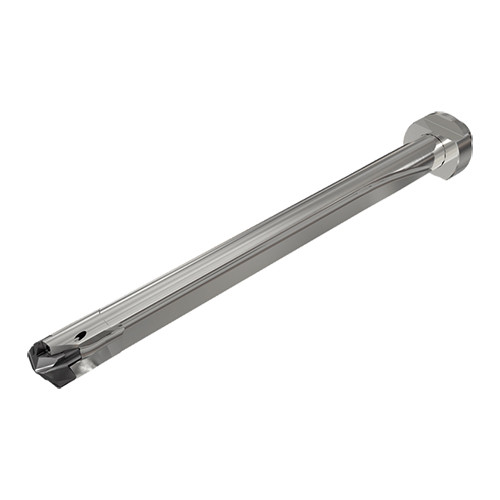

MNSNT 250-400-MF20X1
Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types.
Termékadatok

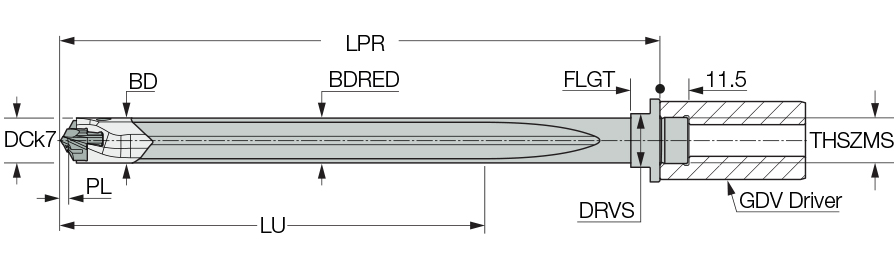

| Cutting Diameter (DC) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 400 mm | Mérés típusa | Metric |
| Alkalmazás | | Ágyúfúró | Fúrás | | Master Insert Identification (MIID) | HCP 250 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 5.7 mm |
| Insert Seat Size Code (SSC) | 25.0 | Test anyaga | Steel |
| Cutting Diameter Minimum (DCN) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | MF20X1 |
| Cutting Diameter Maximum (DCX) | 25.99 mm | Drive Size (DRVS) | 28 mm |
| Protruding Length (LPR) | 506 mm | Egység | M |
Termékjellemzők
| Termékcsalád | Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types. | COO | Israel |

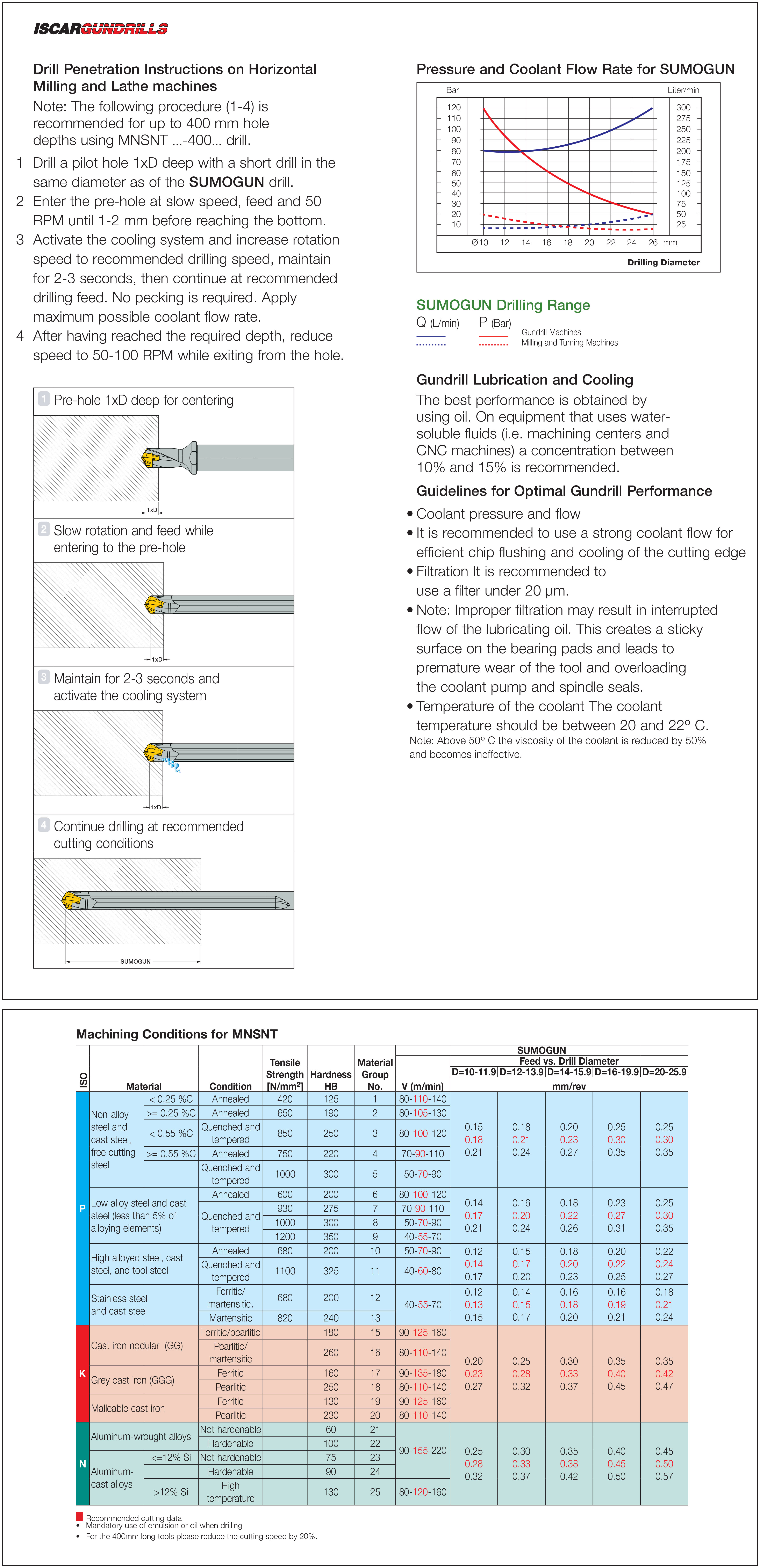

| Megjegyzések | For user guide and cutting conditions, click on More Info |
Shipping Info
Csomag súlya
1.0850
