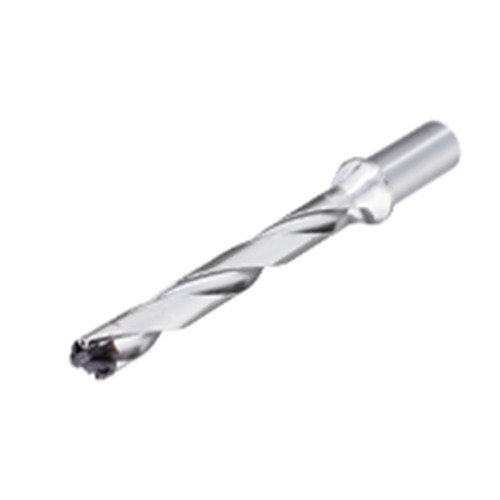

DCN 060-048-12R-8D
SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Termékadatok
| Cutting Diameter (DC) | 6 mm | Overall Length (OAL) | 107 mm |
| Usable Length (LU) | 48.96 mm | Shank Length (LS) | 45 mm |
| Szártípus | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Alkalmazás | | Fúrás | | Mérés típusa | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 060 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Point Length (PL) | 0.96 mm |
| Insert Seat Size Code (SSC) | 6.0 | Test anyaga | Steel |
| Cutting Diameter Minimum (DCN) | 6 mm | Flange Diameter (DF) | 16 mm |
| Cutting Diameter Maximum (DCX) | 6.49 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 62 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 60.91 mm | Egység | M |
Termékjellemzők
| Termékcsalád | SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Megjegyzések | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Csomag súlya
0.0810
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
