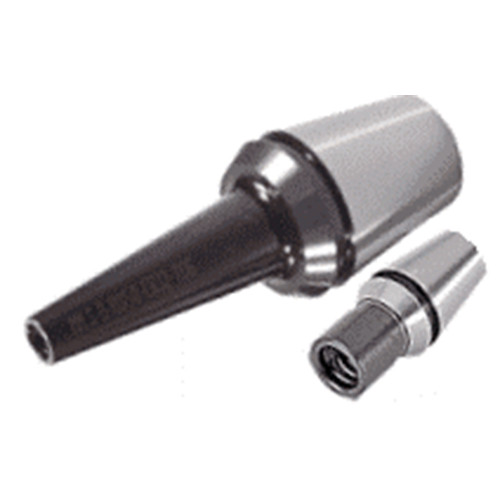

MM S-A-H10.5-ER25-T12
Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation
Termékadatok

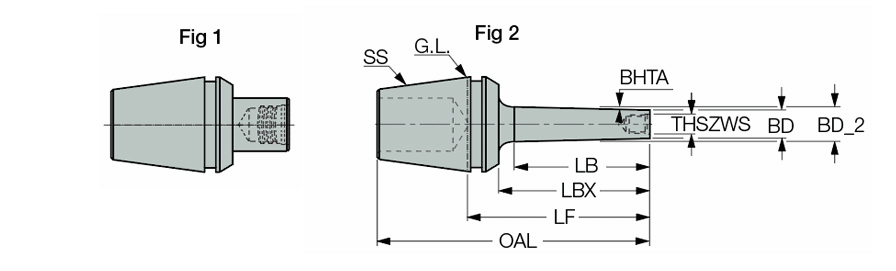

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T12 | Body Diameter (BD) | 18.3 mm |
| Overall Length (OAL) | 44.5 mm | Functional Length (LF) | 19.6 mm |
| Shank Size (SS) | ER25 | Mérés típusa | Metric |
| Body Length Maximum (LBX) | 10.5 mm | Test anyaga | Steel |
| Tool Type | Spring Collets | Egység | M |
Termékjellemzők
| Termékcsalád | Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation | Családnév | MM S-ER |
| Megjegyzések | Do not apply lubricant to the threaded connection. For adaptation click on More Info. When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Csomag súlya
0.1040
Név
Solid End Mill Shanks
Családnév
MM S-ER
BrandName
Iscar
