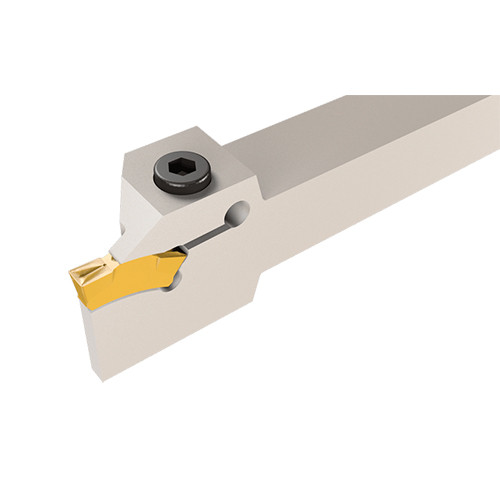

TGDL 2020-3M
Termékadatok

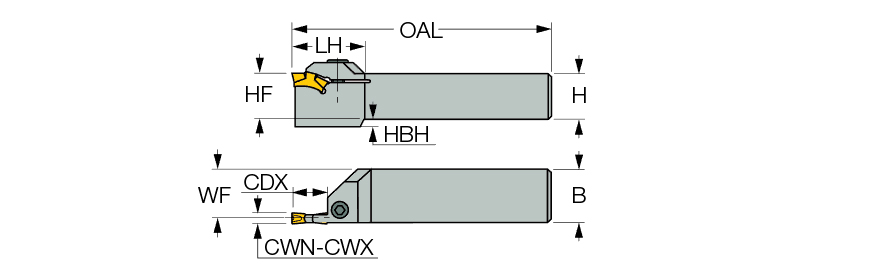

| Cutting Width Minimum (CWN) | 3 mm | Head Length (LH) | 30.5 mm |
| Cutting Width Maximum (CWX) | 3 mm | Overall Length (OAL) | 125 mm |
| Cutting Depth Maximum (CDX) | 7.5 mm | Alkalmazás | | 3 Irányú Esztergálás | Beszúrás | Külső profilozás | |
| Shank Height (H) | 20 mm | Test anyaga | Steel |
| Shank Width (B) | 20 mm | Tool Type | Turn-Groove Tools |
| Body Width (WB) | 2.4 mm | Mérés típusa | Metric |
| Functional Width (WF) | 18.7 mm | Egység | M |
Termékjellemzők
| Termékcsalád | Holders for Top-Grip utility double ended insert. | Családnév | TGDR/L |

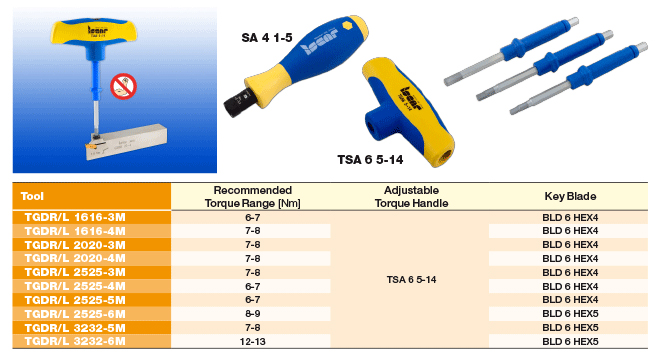

| Megjegyzések | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Csomag súlya
0.4030
Név
Groove/Turn Indexable Holders
Családnév
TGDR/L
BrandName
Iscar
Related Documentation
Tools for multi-directional machining with support under the arc-shaped insert, for turning, grooving and parting with maximum stability.
