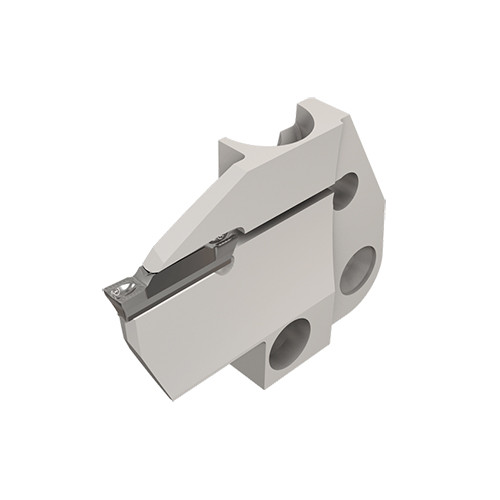

HFPAD 3L-30-T10
Adapters for face grooving and turning in the 25-400 mm diameter range. Part of the MODULAR-GRIP system.
Termékadatok

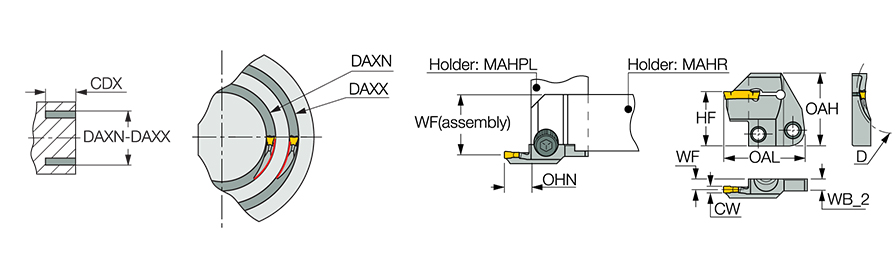

| Cutting Depth Maximum (CDX) | 10 mm | Alkalmazás | | 3 Irányú Homlok Esztergálás | Beszúrás Homlokfelületen | Homlokbeszúrás csap mellett | |
| Cutting Width (CW) | 3 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Test anyaga | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 40 mm | Functional Width (WF) | 4.8 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 30 mm | Mérés típusa | Metric |
| Overall Length (OAL) | 39.5 mm | Egység | M |
Termékjellemzők
| Termékcsalád | Adapters for face grooving and turning in the 25-400 mm diameter range. Part of the MODULAR-GRIP system. | Családnév | HFPAD-3 |

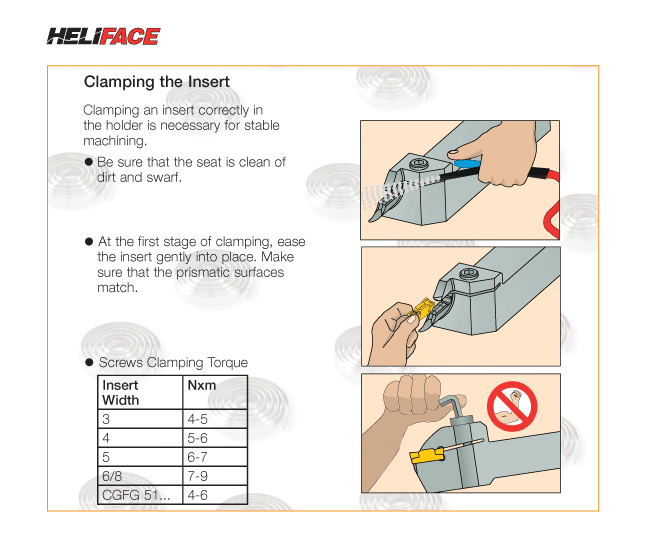

| Megjegyzések | WF(assembly)=WF(shank) + WF(adapter) HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3..inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Csomag súlya
0.0460
Név
Face Groove/Turn Indexable Holders
Családnév
HFPAD-3
BrandName
Iscar
