PCHL 25.4-34

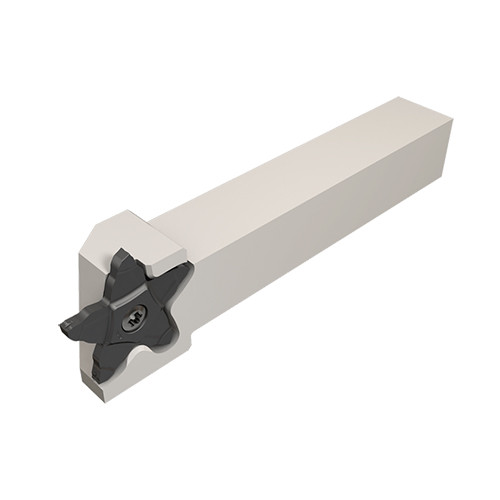

PENTACUT holders carrying 5 cutting edged inserts, for grooving, parting and recessing.
Termékadatok

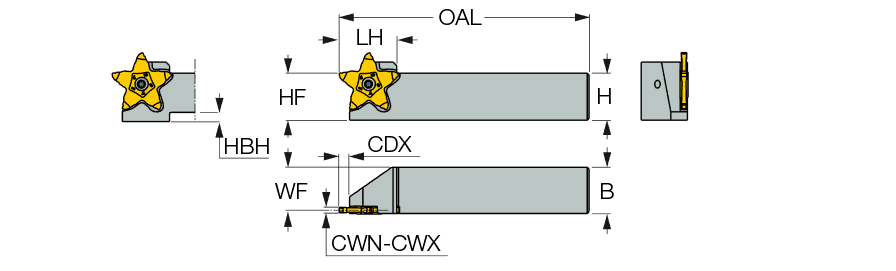

| Shank Height (H) | 1″ | Alkalmazás | | Beszúrás | Beszúrás Homlokfelületen | Leszúrás | |
| Shank Width (B) | 1″ | Test anyaga | Steel |
| Cutting Width Minimum (CWN) | 0.059″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.157″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 5-1/2″ | Mérés típusa | Inch |
| Head Length (LH) | 1.2″ | Tool Assembly Length (LTA) | 1.69″ |
| Cutting Depth Maximum (CDX) | 0.394″ | Egység | I |
Termékjellemzők
| Termékcsalád | PENTACUT holders carrying 5 cutting edged inserts, for grooving, parting and recessing. | Családnév | PCHR/L-34 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Csomag súlya
1.5036
Név
Parting Off Indexable Holders
Családnév
PCHR/L-34
BrandName
Iscar
