Termékadatok

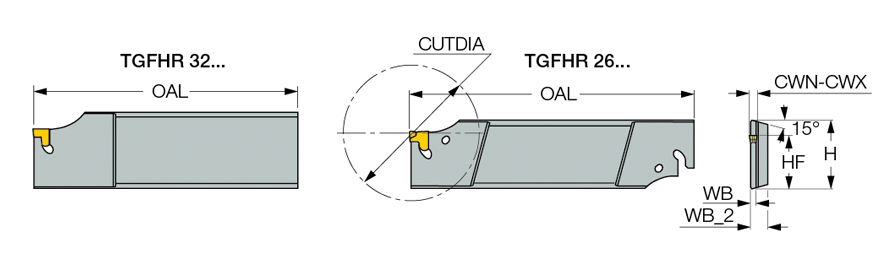

| Shank Height (H) | 32 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 3.4 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 66 mm |
| Cutting Width Minimum (CWN) | 3.7 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 4.5 mm | Mérés típusa | Metric |
| Overall Length (OAL) | 110.5 mm | Body Width_2 (WB_2) | 7.9 mm |
| Alkalmazás | | Beszúrás | Leszúrás | | Tool Assembly Length (LTA) | 43.5 mm |
| Number of Pocket (NOP) | 1 | Egység | M |
| Test anyaga | Steel |
Termékjellemzők

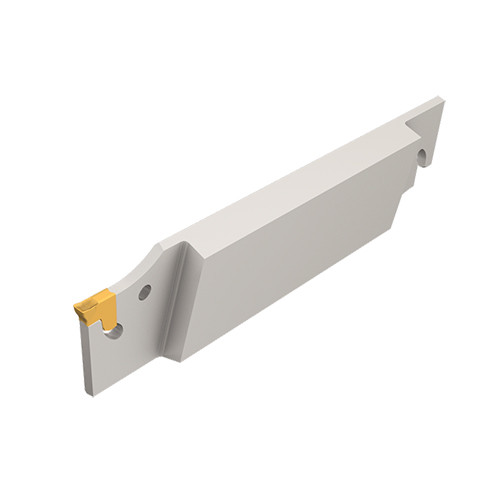

| Termékcsalád | Single-and double-ended, parting and grooving, reinforced blades carrying TANG-GRIP tangentially clamped inserts. | Családnév | TGFHR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Csomag súlya
0.1780
Név
Parting Off Indexable Holders
Családnév
TGFHR/L
BrandName
Iscar
