Termékadatok

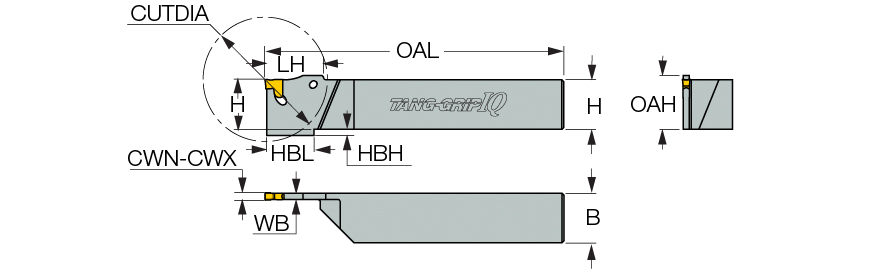

| Shank Height (H) | 20 mm | Alkalmazás | | Beszúrás | Leszúrás | |
| Shank Width (B) | 20 mm | Test anyaga | Steel |
| Body Width (WB) | 3.4 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 3.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 57 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 120.5 mm | Mérés típusa | Metric |
| Head Length (LH) | 23.4 mm | Tool Assembly Length (LTA) | 45.64 mm |
| Overall Height (OAH) | 21.7 mm | Egység | M |
Termékjellemzők
| Termékcsalád | Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Családnév | TGTR/L-IQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Csomag súlya
0.3210
Név
Parting Off Indexable Holders
Családnév
TGTR/L-IQ
BrandName
Iscar
