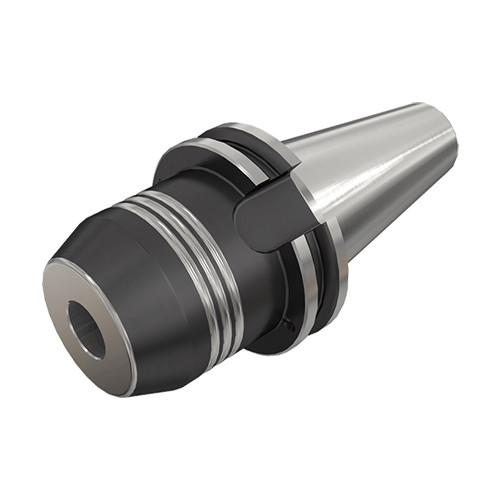

SK40 HYDRO 20X64.5 HD
Heavy duty, short hydraulic chucks with DIN69871 form ADB shanks
Termékadatok

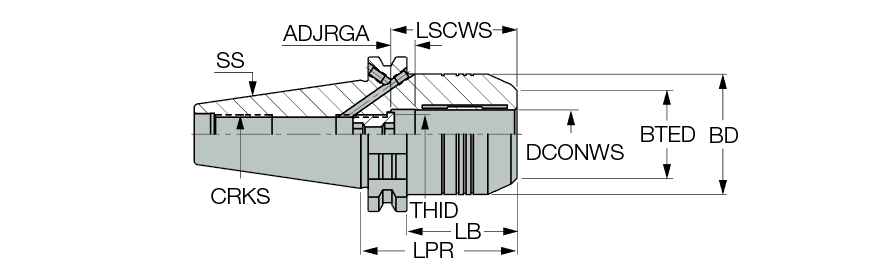

| Body Length (LB) | 45.5 mm | Mérés típusa | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Test anyaga | Steel |
| Body Diameter (BD) | 49.25 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Protruding Length (LPR) | 64.5 mm | Egység | M |
| Shank Size (SS) | 40 |
Termékjellemzők
| Termékcsalád | Heavy duty, short hydraulic chucks with DIN69871 form ADB shanks | Családnév | DIN69871-HYDRO HD |
| COO | Germany | BrandName | Iscar |
Shipping Info
Csomag súlya
1.3340
Név
Hydraulic Holders
Családnév
DIN69871-HYDRO HD
BrandName
Iscar
