DCBNR 2525M-12

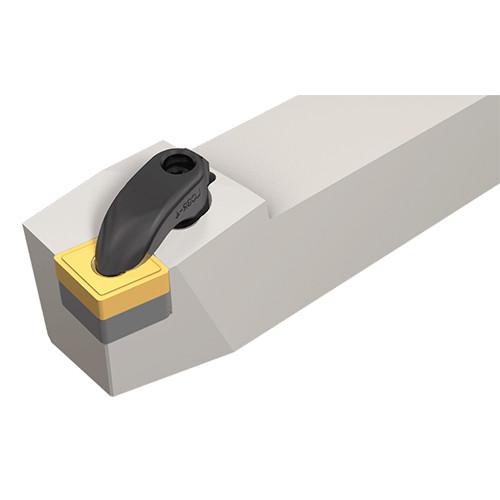

R-clamp tools with 75° lead angle using the 100° corner of CNMG inserts.
Termékadatok

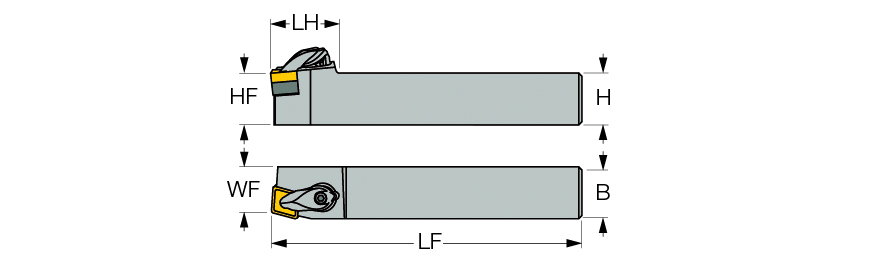

| Shank Height (H) | 25 mm | Alkalmazás | | Külső 100° os lapka 75° os Esz | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -5.6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -8.2 Degrees |
| Head Length (LH) | 36 mm | Test anyaga | Steel |
| Functional Width (WF) | 22 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Mérés típusa | Metric |
| Cutting Direction (HAND) | Right Hand | Egység | M |
| Master Insert Identification (MIID) | CNMG 1204 |
Termékjellemzők
| Termékcsalád | R-clamp tools with 75° lead angle using the 100° corner of CNMG inserts. | Családnév | DCBNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Csomag súlya
0.7880
Név
General Indexable Turning Tools
Családnév
DCBNR/L
BrandName
Iscar
