Termékadatok

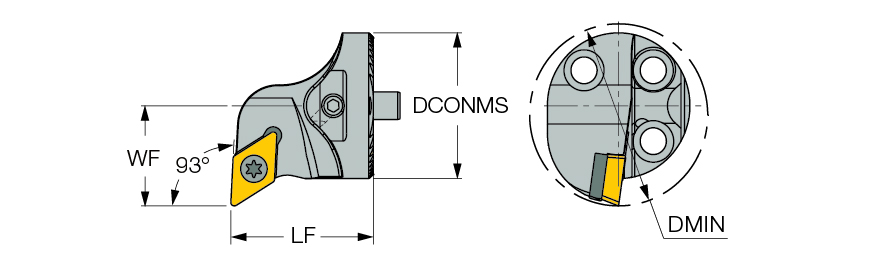

| Connection Diameter Machine Side (DCONMS) | 20 mm | Alkalmazás | | Belső 55° os lapka 93° os Eszt | |
| Functional Length (LF) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 13 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | DCMT 3-2-14 | Test anyaga | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Mérés típusa | Metric |
| Cutting Direction (HAND) | Right Hand | Egység | M |
| Coolant Supply Property (CSP) | External |
Termékjellemzők

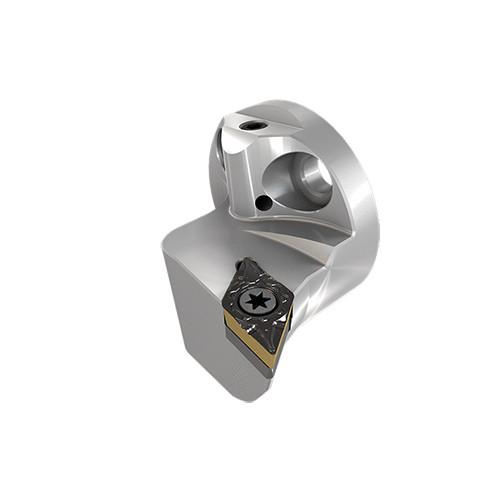

| Termékcsalád | Interchangeable boring heads carrying 55° rhombic inserts with 7° clearance. | Családnév | AVC-SDUCR/L |
| COO | China | BrandName | Iscar |
Shipping Info
Csomag súlya
0.0310
Név
Indexable Internal Turning Tools
Családnév
AVC-SDUCR/L
BrandName
Iscar
