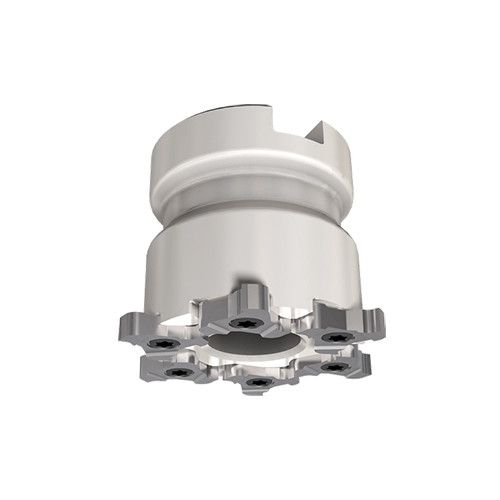

TRIB 63-22SM 8Z-B
Grooving shell mills with triple-edged precision ground inserts.
Termékadatok
| Cutting Diameter (DC/DCX) | 63 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 63 mm | Test anyaga | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Alkalmazás | | Alsó sarokmarás | Belső horonymarás | Oldalhorony marása | Váll marása | |
| Overall Length (OAL) | 41.15 mm | Mérés típusa | Metric |
| Hub Diameter (DHUB) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | Double-sided slotting cutters |
| Master Insert Identification (MIID) | TRI 16RK-5.0-0.2 | Egység | M |
Termékjellemzők
| Termékcsalád | Grooving shell mills with triple-edged precision ground inserts. | Családnév | TRIB-SM |
| Megjegyzések | CWN,CWX, CDX, f, Refer to insert data For inserts with CW=4.01-6.50 mm, order tools with -B suffix (deeper pockets) for example: TRIB 63-22SM-8Z-B For user guide, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Csomag súlya
0.5350
Név
Indexable Face Mills
Családnév
TRIB-SM
BrandName
Iscar
